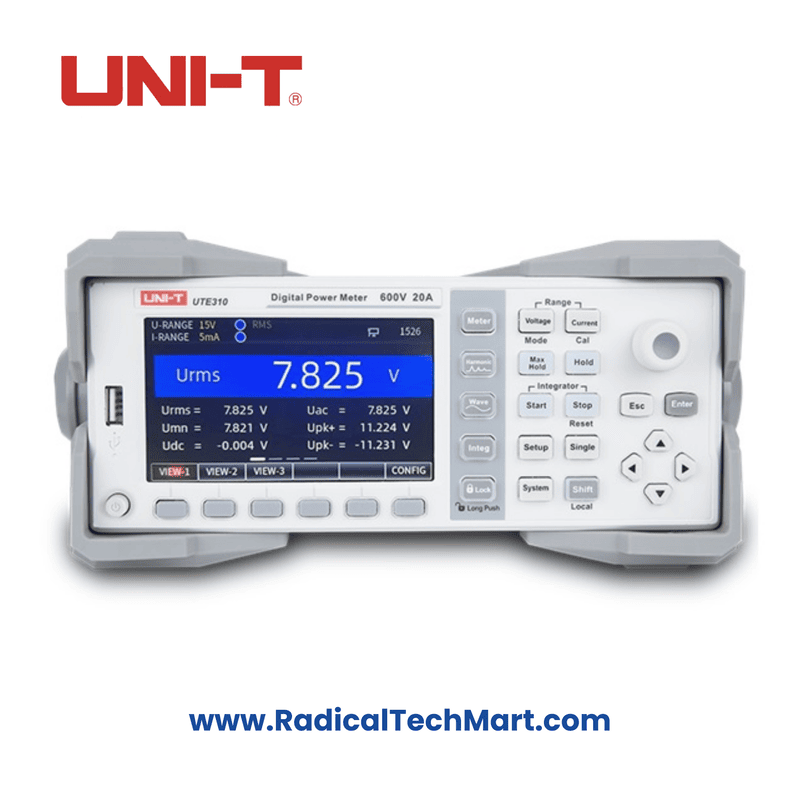

UNI-T UTE310 Digital Power Meter
The UNI-T UTE310 AC/DC Power Meter is a high-accuracy digital power meter designed to meet the rigorous demands of professional engineers across various applications, offering exceptional performance for measuring voltage, current, and power. Here's an overview of its features:
4.3-inch LCD Display: The UTE310 features a vivid 4.3-inch full-color TFT LCD that allows users to view three display interfaces simultaneously. This large and crisp display provides more parameter information at a glance, eliminating the need for multiple tools and improving testing efficiency.
Sample Rate of 1MSa/s (1MHz): With a high sampling rate of 1MSa/s, the UTE310 captures even the most transient signals with exceptional accuracy. This is particularly beneficial for engineers working with fast-changing or dynamic electrical systems where reliable measurements are critical.
300kHz Bandwidth: The UTE310 offers a 300kHz bandwidth, enabling it to capture higher-frequency signals and ensuring comprehensive measurements across a wide range of signals. This makes it suitable for R&D environments and complex industrial testing.
50th Harmonic Measurement: The meter supports harmonic analysis up to the 50th harmonic, in line with the IEC61000-4-7 standards. This is essential for analyzing equipment that generates harmonic distortion, such as motors or power converters, and provides valuable insights into system performance and energy efficiency.
Real-Time Waveform Display: The UTE310 provides real-time waveform visualization of voltage and current, helping engineers quickly identify abnormalities. The automatic peak-to-peak value measurement further enhances the understanding of dynamic system behavior and ensures performance specifications are met.
External Input Capability: For applications requiring higher voltages or currents, the UTE310 can connect to external sensors, greatly extending its measurement range. This feature makes it adaptable to a wide array of engineering tasks, from high-power industrial systems to delicate electronics testing.
Integral Function: The integral function of the UTE310 supports both average active power and current integration. This is useful for long-term power consumption testing, allowing engineers to optimize energy-saving technologies and improve overall device efficiency.
Average Function: For measuring fluctuating signals, the average function stabilizes readings, even at higher refresh rates. It minimizes noise, providing more consistent and reliable data for engineers to analyze.
Jump Configuration: This feature speeds up the measurement process by skipping irrelevant ranges based on previous experience. Jump configuration enhances the automatic range feature, reducing unnecessary measurements and enabling quicker analysis and faster results.
D/A Output for Real-Time Control: The UTE310’s D/A output facilitates real-time communication with control systems. By sending measured values directly to a test platform, engineers can make real-time adjustments, monitor performance, and automate controls for superior system management.
Voltage and Current Range: The meter has a voltage range of 0.75mV to 600V and a current range of 25µA to 20A, making it versatile for various measurement tasks.
Measurement Modes: The UTE310 supports multiple measurement modes including DC, TRMS (True RMS), and MN, providing flexibility for different types of electrical signals.
Connectivity: The device offers multiple connectivity options, including RS-232, GPIB (optional), LAN, and USB, enabling seamless integration with various test setups and data acquisition systems.
Accuracy: The UTE310 provides an impressive accuracy of ±(0.1% rdg + 0.05% F.S.), ensuring precise and reliable measurements.
Warranty: The UNI-T UTE310 comes with a 3-year warranty, ensuring long-term reliability and support.
This power meter is ideal for R&D, testing, and production environments where high-precision energy measurements are crucial for enhancing energy efficiency and system performance.
